PECIFICATIONS

Design: 3.5-inch touchscreen panel with integrated physical controls and infrared (IR) remote functionality
Wireless Connectivity: Wi-Fi, IR, and mesh protocol compatibility
Power Input: 100-240V AC, 50/60Hz
Maximum Load Capacity:

• Total: 600W

• Per Channel: 200W
  Operating Environment:

• Temperature: 0°C to 40°C

• Humidity: 5%-90% RH (non-condensing)
  Dimensions:

• Panel: 86 x 86 x 11.5mm (3.39 x 3.39 x 0.45in)

• With Mounting Base: 86 x 86 x 35.5mm
  Frequency Band: 2400–2483.5 MHz
  Package Details:

• Size: 95 x 95 x 48mm

• Weight: 192g

Product Overview

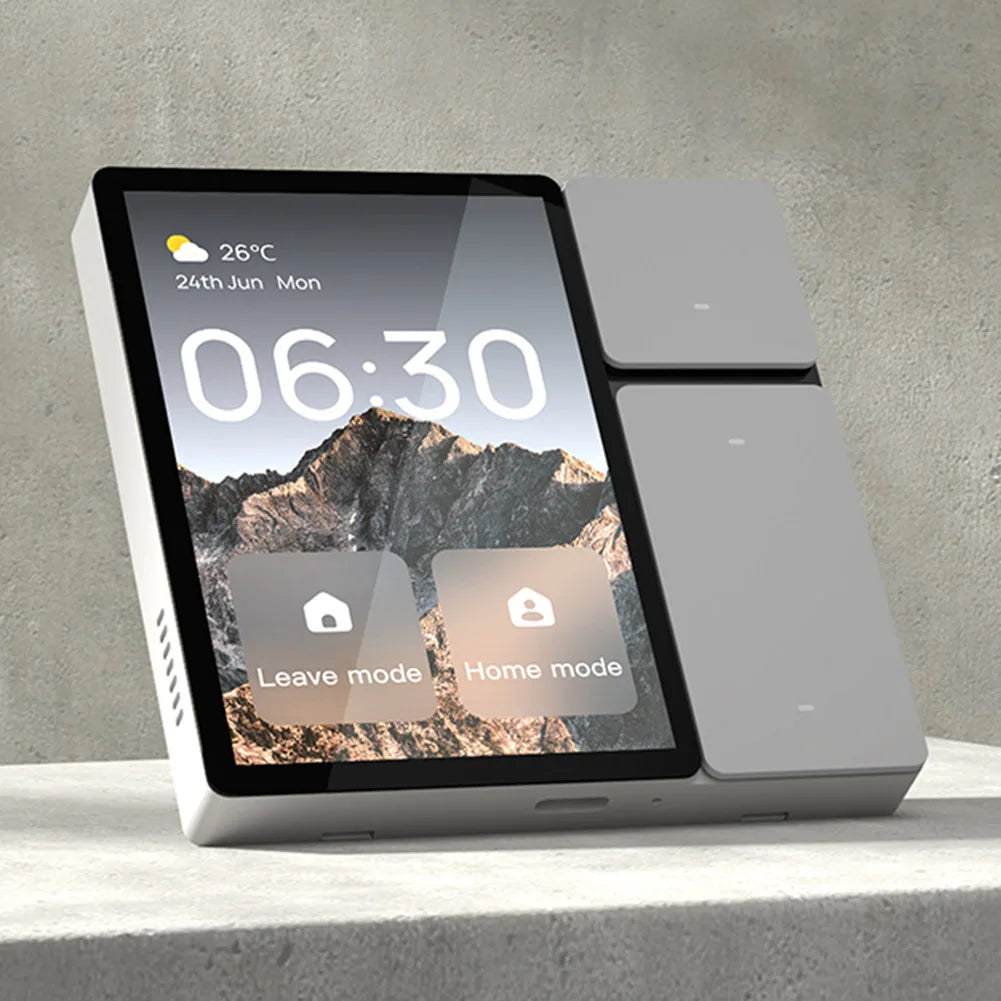

This touchscreen control interface centralizes management of smart home ecosystems, combining a high-resolution display, three programmable relay channels, and IR remote capabilities. Designed to replace traditional switches, it supports direct control of lighting, appliances, and automated scenes through intuitive screen interactions.

Key Features

• High-Resolution Display: Edge-to-edge 3.5-inch capacitive touchscreen with anti-interference technology for precise multi-touch responsiveness.

• Versatile Integration: Controls up to 110+ device categories via IR, relay channels, or wireless protocols. Supports unlimited custom scenes.

• Adaptable Design: Asymmetric button layout optimizes IR signal dispersion for broad device coverage. Includes subtle backlit indicators for low-light visibility.

• Sleek Aesthetic: Minimalist frame with advanced surface treatments for refined visual and tactile appeal.

Installation Flexibility

• Wall-mounted or portable use with included mounting hardware.

• Wireless setup eliminates complex wiring.

Included Components

• 1x Control Interface Unit

• 1x Mounting Hardware Kit

• 1x User Manual
